120V 200Ah LiFePO4 Forklift Battery | High Cycle Life Rechargeable Industrial Battery

Quantità di ordine minimo : 10 unità Prezzo : negoziabile
Imballaggi particolari : Caso e contenitori di legno di cartone Tempi di consegna : 7-15 giorni lavorativi
Luogo di origine: Cina Marca: CLF/OEM
Certificazione: CE, ROHS,UN38.3, MSDS Numero di modello: CLF-R3817

Informazioni dettagliate

Modello di batteria: CLF-R3817 Cella della batteria: grado A
Tipo di batteria: litio Materiali dell'anodo: LFP/NCM
Tensione nominale:: 60 V Capacità nominale:: 100ah/Customized
Corrente di scarica: 100A Corrente di scarica continua massima: 200A
Ciclo di vita:: > 6000 (a 80% DoD) Misurare: 550*375*180mm/CUSTOMIZED
Grado IP: IP67 Applicazione:: Carretti di golf, del carrello elevatore, bus a bassa velocità, veicolo ecc di risanamento
OEM/ODM: Accettabile

Descrizione di prodotto

120V 200Ah LiFePO4 Forklift Battery is a professional energy solution specially designed for electric forklifts, pallet jacks, stackers, and various industrial warehouse handling equipment. Adopting high-quality grade A LiFePO4 cells and integrated smart BMS protection system, it features long cycle life, maintenance-free operation, stable output performance, fast charging, and low self-discharge, which can fully replace traditional lead-acid batteries and help enterprises reduce operation costs while improving work efficiency. OEM/ODM customization services are available to meet different equipment and application needs.

  • 120V 200Ah Standard Specification
  • LiFePO4 Safe Lithium Battery
  • Built-in Smart BMS Protection
  • ≥6000 Deep Cycle Times
  • Fast Charging & Low Self-discharge
  • Directly Replace Lead-acid Battery
  • CE/MSDS/UN38.3 Certified
  • OEM/ODM Customizable
ItemSpecification
Rated Voltage120V DC
Rated Capacity200Ah (0.2C, 25℃)
Battery ChemistryLiFePO4 (Lithium Iron Phosphate)
Cycle Life≥6000 Cycles @ 80% DOD (Depth of Discharge); ≥8000 Cycles @ 50% DOD
Charging Voltage136.5V DC (Constant Current & Constant Voltage Charging)
Charging Current20A-40A (Fast Charging Optional: 60A)
Discharge Cut-off Voltage102V DC
Max Continuous Discharge Current200A (300A Peak Discharge for 10s)
Built-in BMSIntelligent Battery Management System, supporting overcharge, overdischarge, overcurrent, short circuit, over-temperature, under-temperature, and balance protection
Self-discharge Rate≤3% per month (25℃, no load)
Operating Temperature RangeCharging: 0℃ ~ 55℃; Discharging: -20℃ ~ 60℃
Storage Temperature Range-20℃ ~ 45℃ (Recommended: 10℃ ~ 25℃, 50% SOC)
Dimension (L×W×H)650mm×480mm×280mm (Customizable according to equipment requirements)
Net Weight85kg (About 40% lighter than lead-acid battery of the same capacity)
Connector TypeAnderson Connector / DIN Connector / Custom Connector
Waterproof GradeIP54 (IP65 Optional for harsh environments)
ApplicationElectric Forklift, Counterbalance Forklift, Pallet Truck, Stacker, Warehouse Logistics Handling Equipment, Industrial Backup Power
CertificationsCE, MSDS, UN38.3, IEC62133, RoHS
Warranty Period3 Years (or 3000 Cycles, whichever comes first)
Custom ServiceOEM/ODM, Logo Customization, Shell Color Customization, Connector Customization, Capacity/Voltage Customization, Communication Protocol Customization (CANbus Optional)

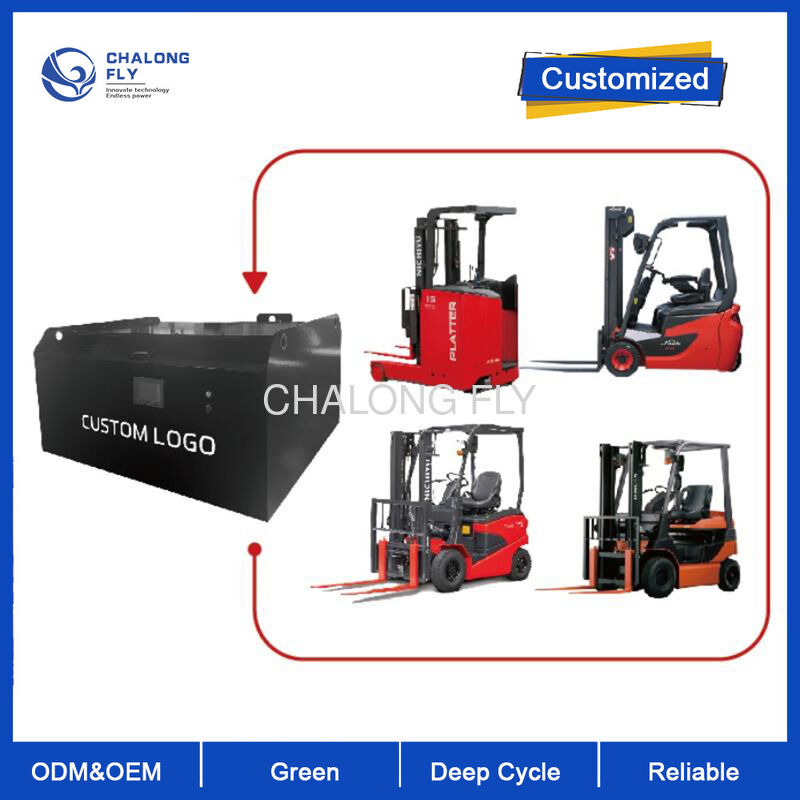

120V 200Ah LiFePO4 Forklift Battery | High Cycle Life Rechargeable Industrial Battery 0
Product Core Advantages

1. Ultra-Long Cycle Life, Cost-Saving

Adopts 100% grade A LiFePO4 cells with high purity and stable performance, strict screening and aging test. The cycle life reaches more than 6000 times at 80% DOD, which is 3-5 times that of traditional lead-acid batteries (usually 1000-1500 cycles). It can be used for 5-8 years under normal use, greatly reducing the frequency of battery replacement and saving long-term purchase and replacement costs for enterprises.

2.Fast Charging & Stable Discharge, Meet Long-Time Work Needs

Supports fast charging technology, which can be fully charged in 3-5 hours (depending on charging current), while traditional lead-acid batteries usually take 8-12 hours. The battery has stable continuous discharge performance, with a constant output voltage during discharge, ensuring that the forklift maintains stable power during long-time continuous operation (8-12 hours of continuous work per full charge), suitable for high-intensity warehouse logistics operations.

Application Scenarios

English: Our 120V 200Ah LiFePO4 forklift battery is widely used in various industrial and logistics scenarios, mainly suitable for: 1. Electric forklifts (counterbalance forklifts, reach forklifts, order pickers) in warehouses, factories, and logistics parks; 2. Pallet trucks, stackers, and other material handling equipment for goods loading, unloading, and stacking; 3. Industrial workshops, ports, and terminals for heavy-duty handling operations; 4. Cold storage and low-temperature environments (withstand -20℃ low-temperature discharge); 5. Industrial backup power supply for factories, warehouses, and other places (emergency power supply when the main power is cut off).

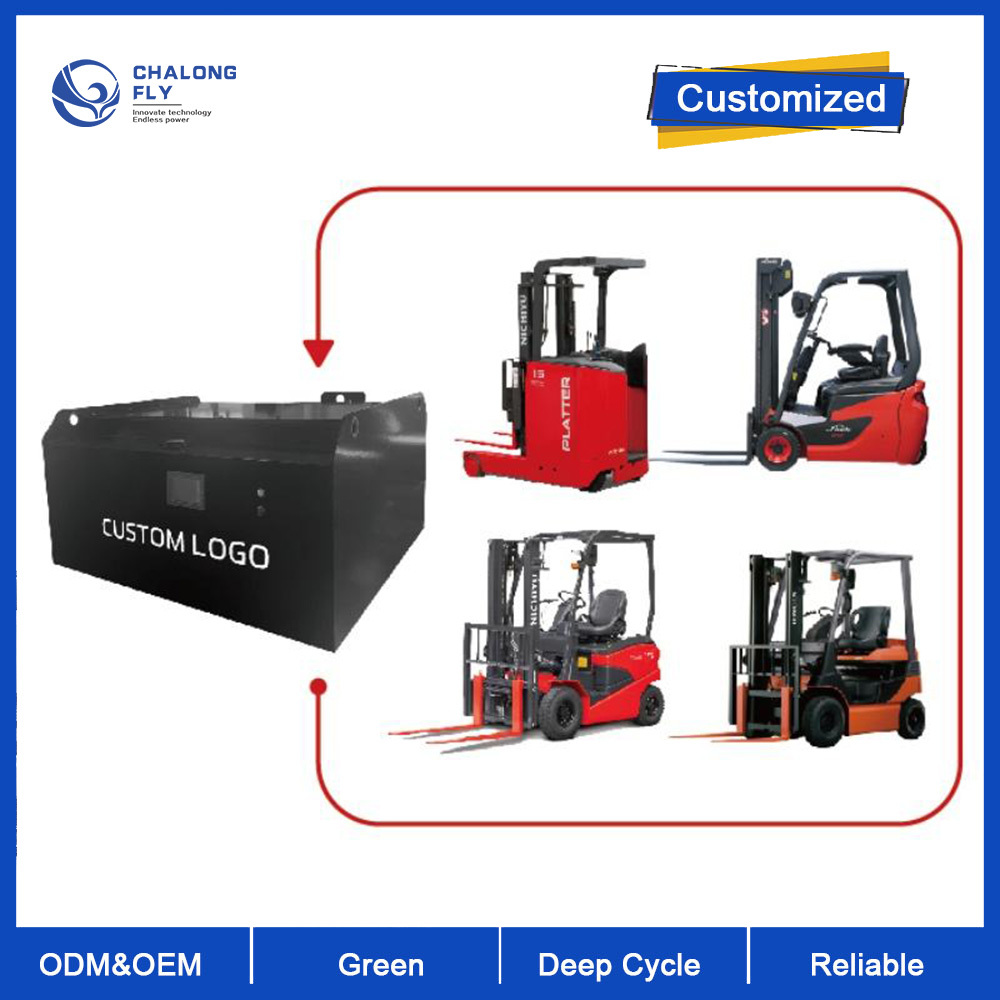

120V 200Ah LiFePO4 Forklift Battery | High Cycle Life Rechargeable Industrial Battery 1

120V 200Ah LiFePO4 Forklift Battery | High Cycle Life Rechargeable Industrial Battery 2
FAQ
  • Q1: Can you support OEM and ODM customization?
    A1: Yes, we fully support OEM and ODM customization. We can customize the size, capacity, voltage, interface, communication protocol, logo and shell according to your specific requirements.
  • Q2: Is this battery compatible with my original forklift charger?
    A2: It can match most original forklift chargers. If there is a compatibility problem, we can adjust the battery's charging parameters or provide a matching charger according to your original charger model.
  • Q3: What is the warranty period of the battery?
    A3: We provide 3 years warranty or 4000 cycles quality guarantee (whichever comes first). During the warranty period, we provide free replacement and maintenance services for non-human damage.
  • Q4: Can the battery be used in low temperature environment?
    A4: Yes, the working temperature of the battery is -20℃~60℃, which can be used normally in general low temperature environments such as warehouses and outdoor yards in winter.
  • Q5: Do I need to maintain the battery regularly?
    A5: No, this lithium battery is completely maintenance-free. You don't need to add water, add acid or do other regular maintenance, which can save a lot of labor and time costs.
