Casa ProdottiPacchetto della batteria al litio di EVBatteria elettrica del carretto di golf48V 150Ah LiFePO4 Golf Cart Battery with 4000 Cycles Long Life and Maintenance-Free Design

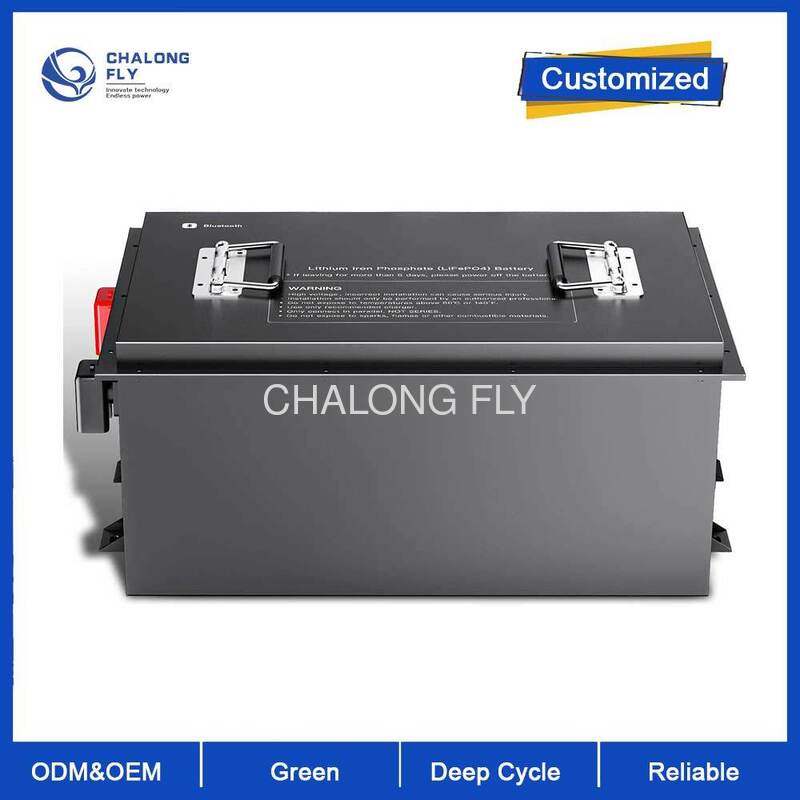

48V 150Ah LiFePO4 Golf Cart Battery with 4000 Cycles Long Life and Maintenance-Free Design
48V 150Ah LiFePO4 Golf Cart Battery with 4000 Cycles Long Life and Maintenance-Free Design
Contattaci

48V 150Ah LiFePO4 Golf Cart Battery with 4000 Cycles Long Life and Maintenance-Free Design

Quantità di ordine minimo : 10 unità Prezzo : negoziabile
Imballaggi particolari : Caso e contenitori di legno di cartone Tempi di consegna : 7-15 giorni lavorativi
Luogo di origine: Cina Marca: CLF/OEM
Certificazione: CB, UL, CE, ROHS,UN38.3, MSDS, BIS Numero di modello: CLF-R2212

Informazioni dettagliate
Modello di batteria: 48V 100Ah Cella della batteria: Classifichi una cellula di batteria al litio
Tipo di batteria: Ioni di litio Materiali dell'anodo: LFP
Tensione nominale:: 36/48/60/72V Capacità nominale:: 100Ah/150Ah/200Ah/Optional
Temperatura di conservazione: -20 ~ 40 ℃ Temperatura di lavoro: -20 ~ 40 ℃
Misurare: 472*334*243mm Ciclo di vita:: Oltre 4000 cicli
Garanzia: 36 mesi

Descrizione di prodotto

High Capacity for Golf Cart / Club Car / EZGO / Yamaha, Ultra-Long Endurance, Maintenance-Free, Safe & Durable

Core Selling Points
  • Super Large Capacity & Ultra-Long Endurance
  • Maintenance-Free & Explosion-Proof
  • Lighter Than Lead-Acid, 5-10 Times Longer Life
  • High Discharge Current, Strong Power
Product Specification
Item Specification
Battery Model 48V 400Ah LiFePO4 Battery
Cell Type LiFePO4 (Lithium Iron Phosphate)
Cell Configuration 16S4P (Customizable according to actual requirements)
Rated Energy 19200Wh (19.2kWh)
Charging Voltage 58.4V
Discharge Cut-Off Voltage 40.0V
Charging Current Recommended 50A-100A
Continuous Discharge Current 200A (Customizable: 150A/250A)
Operating Temperature Charging: 0~55℃, Discharging: -20~60℃
Dimension (L*W*H) 680mm*320mm*280mm (Exact size can be customized)
Net Weight 98KG (Subject to actual product)
BMS Function Overcharge, Overdischarge, Overcurrent, Short Circuit, Overtemperature Protection & Cell Balancing
Cycle Life ≥4000 Cycles @80% DoD
Service Life 5-10 Years
Applicable Models
  1. Golf Carts: Club Car, EZGO, Yamaha and other mainstream golf cart models (especially suitable for large golf carts and heavy-duty models)
  2. Sightseeing Cars, Patrol Cars, Modified Four-Wheel Electric Vehicles (suitable for long-distance and heavy-load use)
  3. 48V Electric Scooters, RV Auxiliary Power Supplies, Industrial Electric Vehicles
48V 150Ah LiFePO4 Golf Cart Battery with 4000 Cycles Long Life and Maintenance-Free Design 0
48V 150Ah LiFePO4 Golf Cart Battery with 4000 Cycles Long Life and Maintenance-Free Design 1 48V 150Ah LiFePO4 Golf Cart Battery with 4000 Cycles Long Life and Maintenance-Free Design 2
Frequently Asked Questions
Q1: Can it directly replace the lead-acid battery?
Yes, it can directly replace the 48V lead-acid battery of the same capacity. The installation size and interface are compatible with mainstream golf cart models, no need to modify the vehicle circuit.
Q2: How long can it be used after being fully charged?
It depends on the vehicle model, load and road conditions. Generally, it can be used for 8-12 hours continuously, and the driving distance is 80-100km, which can meet the needs of a full day of golf course use.
Q3: Do I need a special charger?
Yes, it is recommended to use a 48V special LiFePO4 charger with a charging voltage of 58.4V. Using a lead-acid charger will damage the battery and affect its service life.
Q4: What is the warranty period?
The warranty period is 2 years. Within the warranty period, if the battery has quality problems (non-human damage), we will provide free replacement service and professional technical support.
Q5: Do you support customization of voltage, capacity and interface?
Yes, we support OEM/ODM customization. We can customize voltage, capacity, size, interface and logo according to your specific needs.
Q6: Can it be exported to my country?
Yes, our products have complete export certifications (CE, FCC, ROHS, UN38.3, MSDS), which can meet the import requirements of most countries and regions. We can provide customized packaging and documents to facilitate customs clearance.
